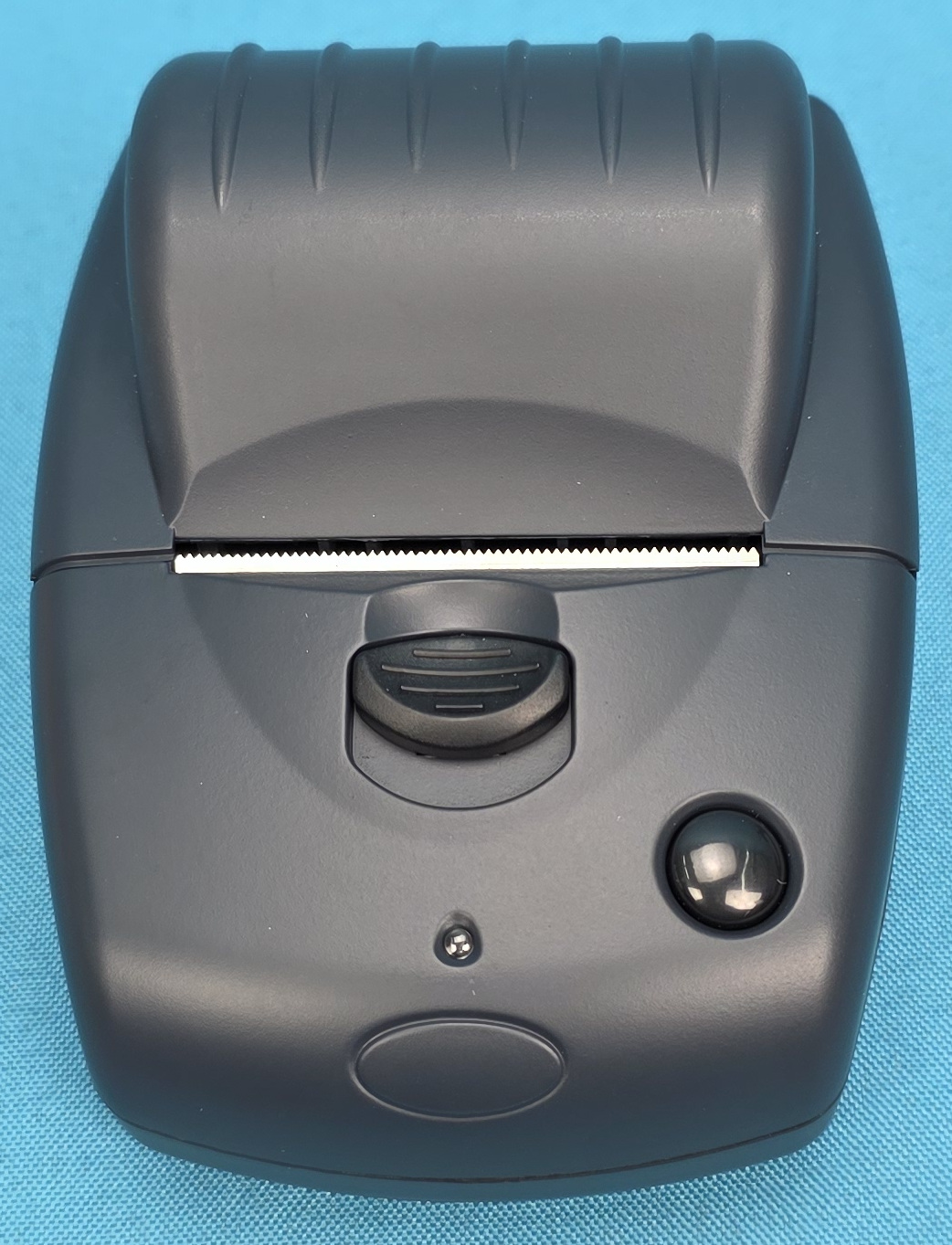

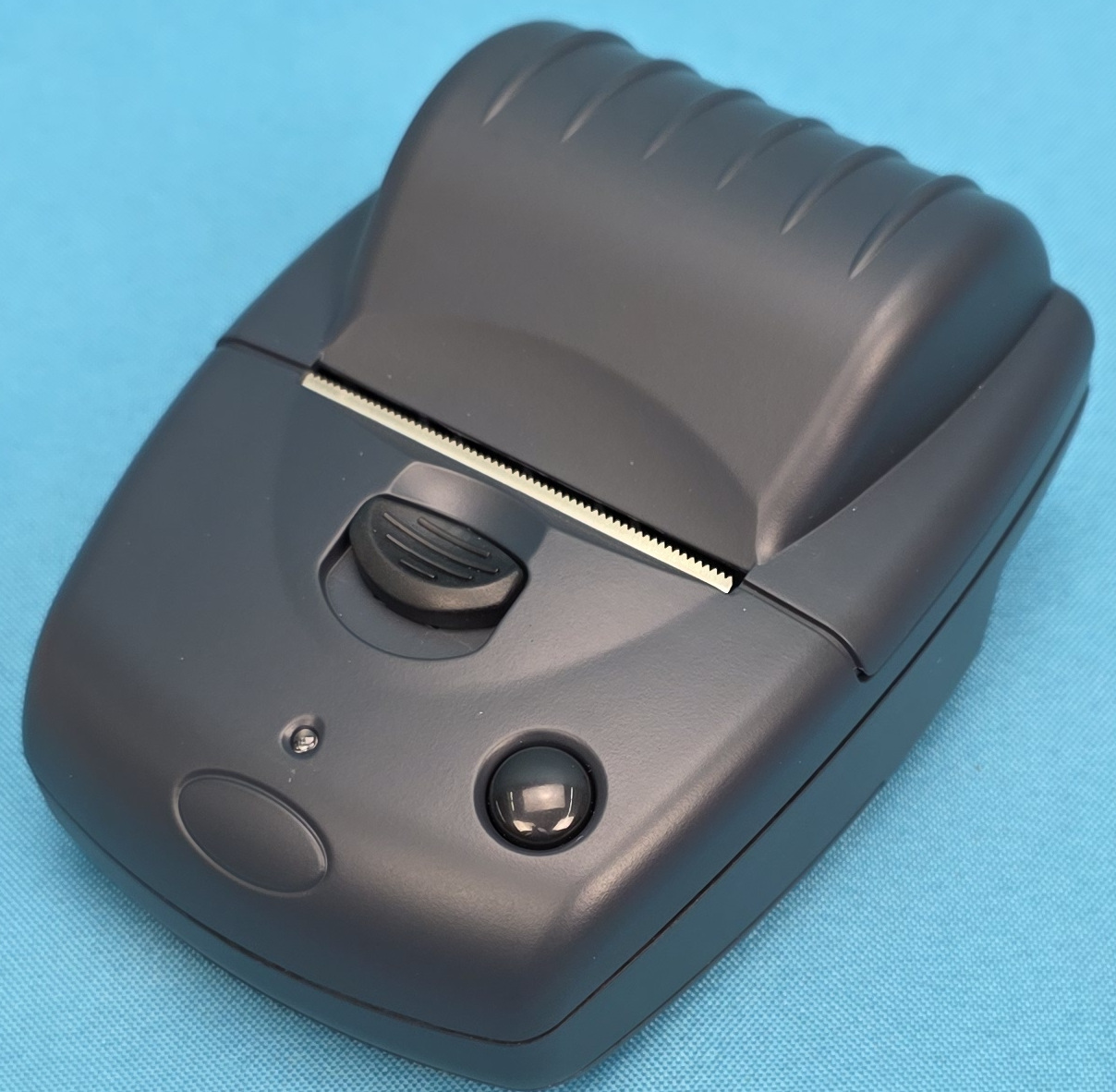

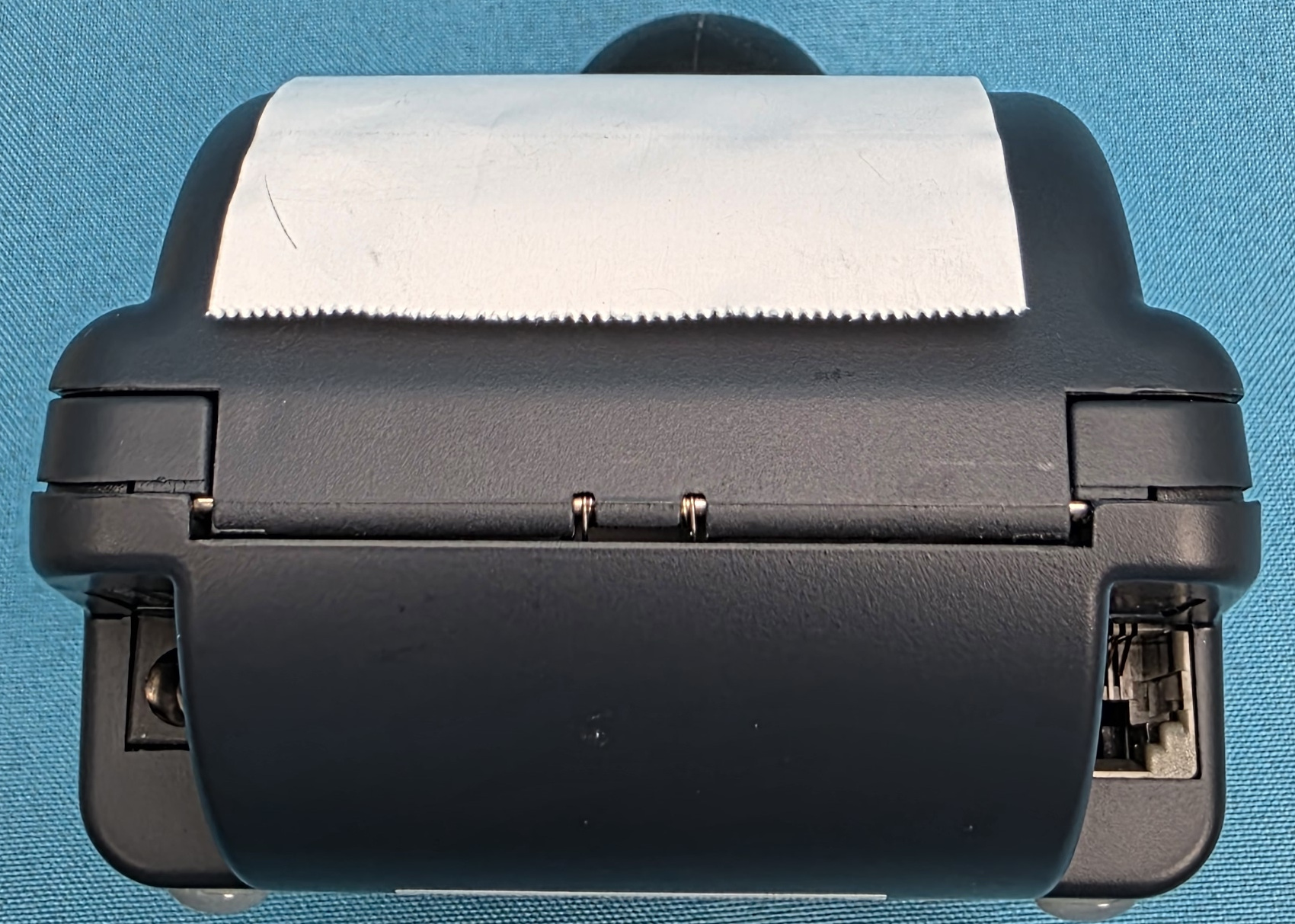

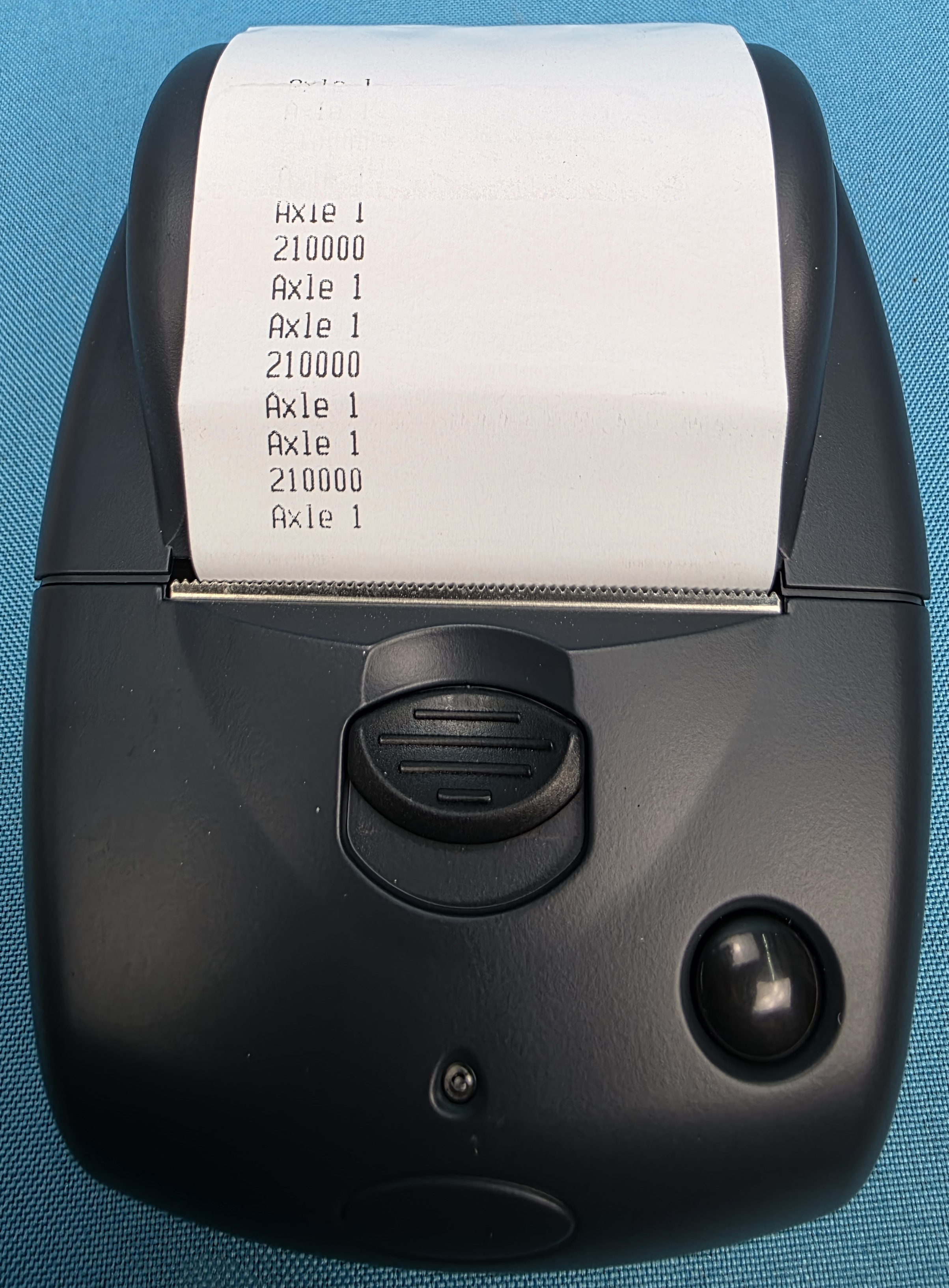

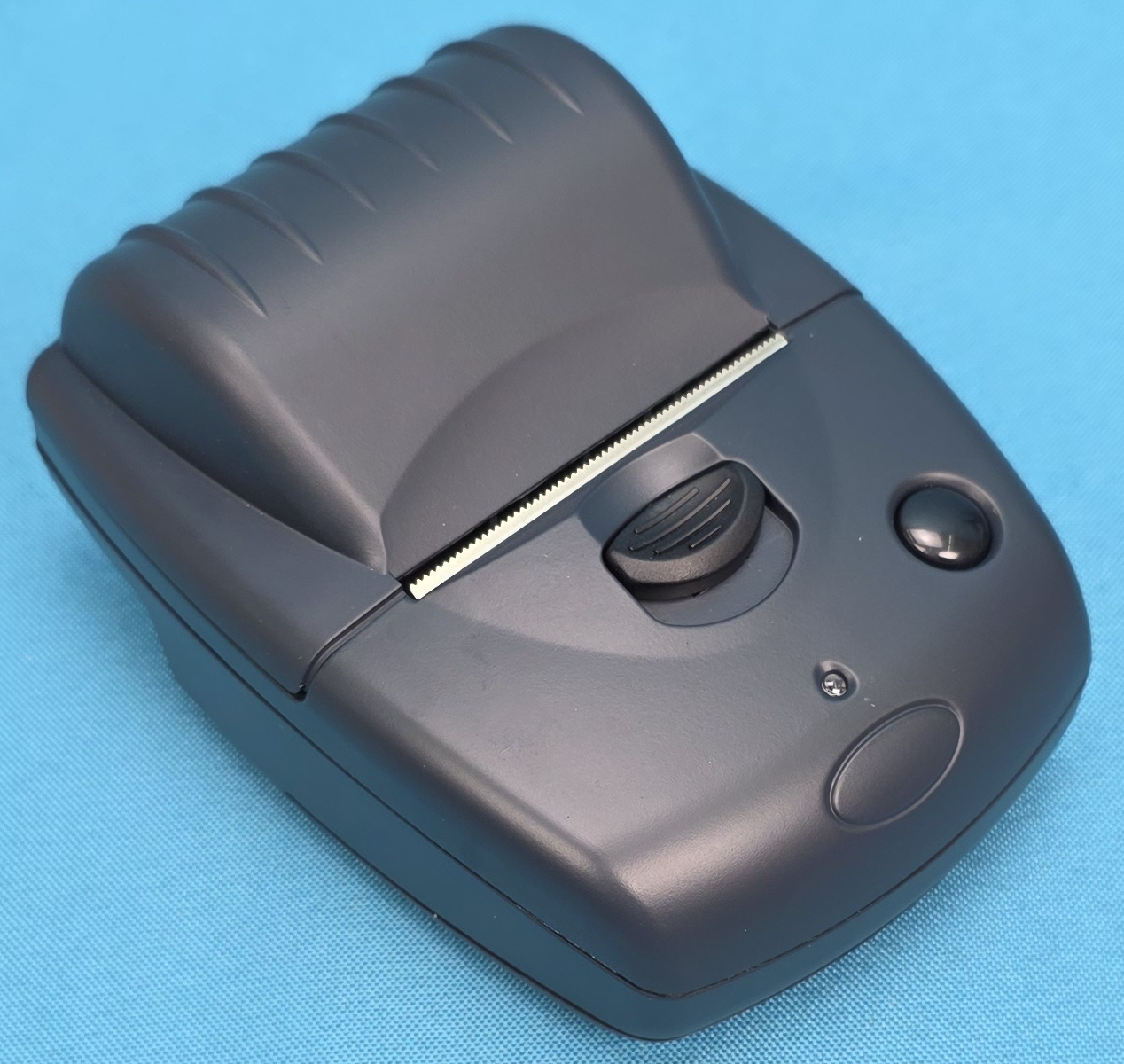

CP130 Thermal Printer Kit
P/N: 1000-7840
Kit includes the following:
- (1) x CP130 Thermal Printer
- (1) x 12VDC Power Cable, 8’ long
- (1) x Scale Printer Cable, 06’ long
- (1) x Roll of Thermal Printer Paper
- (1) x Mounting Bracket
This Printer is 12 volt powered and requires a serial port on your Digi Star Scale indicator. The scale indicator also must have software version 7.D or greater in it to be compatible with this printer.
All Digi-Star Indicator models require software version 7.D or greater to be compatible with the Brecknell CP103 printer. On the table below, any indicators with serial number less than those listed will need to have the software upgraded.
Indicators with serial number less than listed in table must have software updated to work with printer. | |||
Indicator Model | Part # | SN | Start Date |
| 410 | 405647 | 9971 | 01/06/2012 |
| 2410 | 405655 | 21056 | 09/20/2012 |
| 2510 | 406705 | 18546 | 01/19/2012 |
| 2520 | 408110 | 22676 | 02/11/2013 |
| 512 | 407005 | 1371 | 01/24/2012 |
| 520 | 407157 | 1624 | 04/12/2012 |
:
