AMP 206060-1 | 04 Terminal CPC Series I Standard Sex Plug Connector Kit
P/N: 1000-4700
Always EU RoHS/ELV Compliant
Mating Connector (click on number)
Accessories (click on number)
Common Applications:
- M3 Seed Monitor Power
- Digi-Star Scale Power
- Certain Weigh-Tronix Scale Power
Kit includes:
- (1) x Connector Body
- (1) x Size 11 Small Opening Cable Clamp
- (4) x Female 18-16ga Terminals
*Quantities of 10 or more kits may be bulk packed.
AMP 206060-1 | 4-Position CPC Series 1 Standard Sex Plug Connector Kit

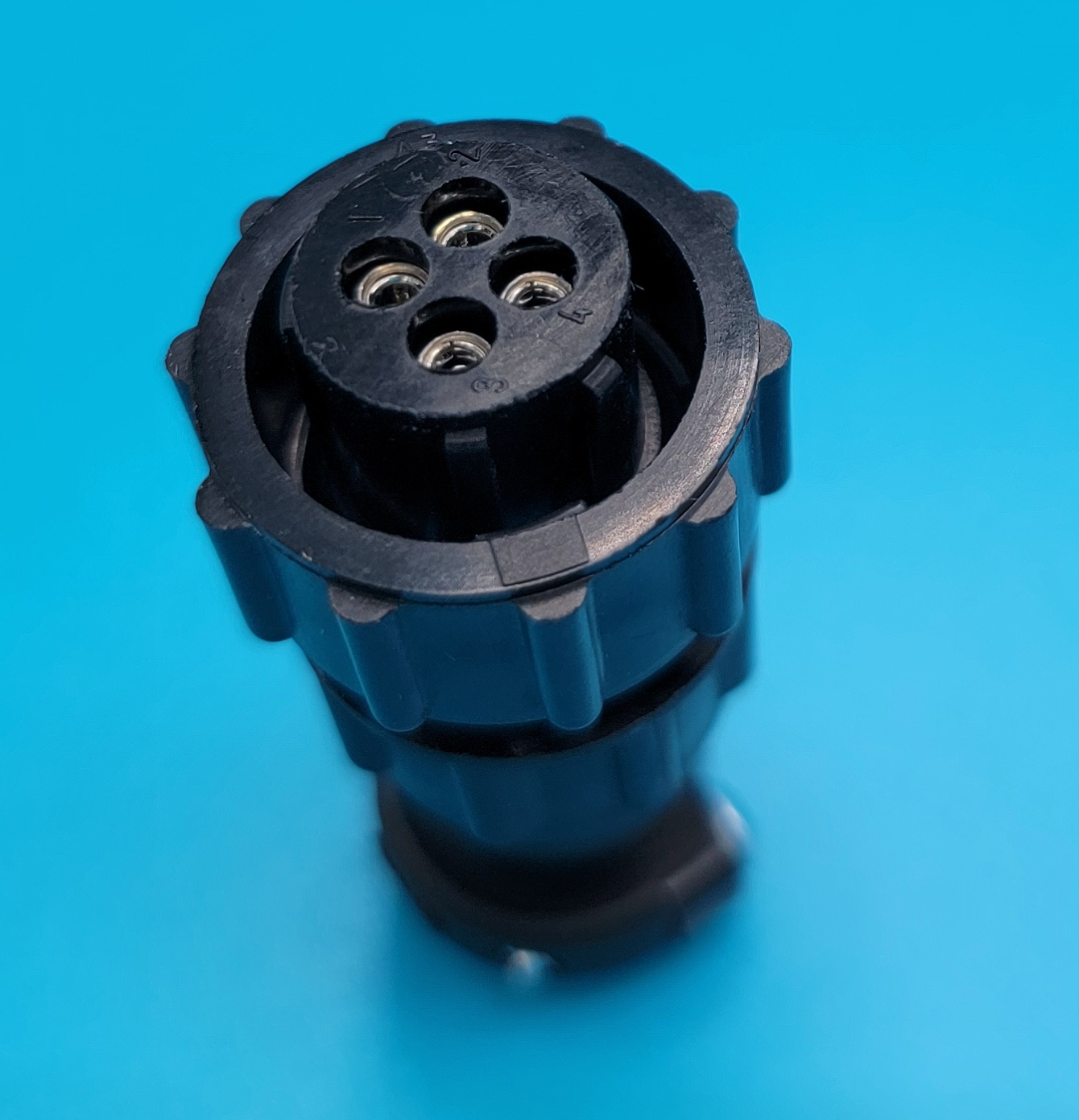

The AMP 206060-1 is a 4-position CPC Series 1 (Size 11) standard sex plug connector from TE Connectivity. This is the 4-pin AMP power plug used on Digi-Star and Weigh-Tronix scale indicators, M3 seed monitors, and a wide range of agricultural and industrial signal and power harnesses. The kit ships ready to terminate: the molded plug body, a size 11 small opening cable clamp, and four crimp socket terminals sized for 18-16 AWG wire. No loose-parts hunting and no guessing on contacts.
The black thermoplastic housing is rated to 600V and built from glass-filled nylon 6.6 with a UL 94V-0 flame rating. A threaded coupling nut locks the connection by hand and holds up to vibration in the cab or on the frame. The plug carries female socket contacts and mates with any CPC Series 1 size 11-4 receptacle, including the panel-mount 206061-1 and the in-line 206153-1.
What's in the Kit

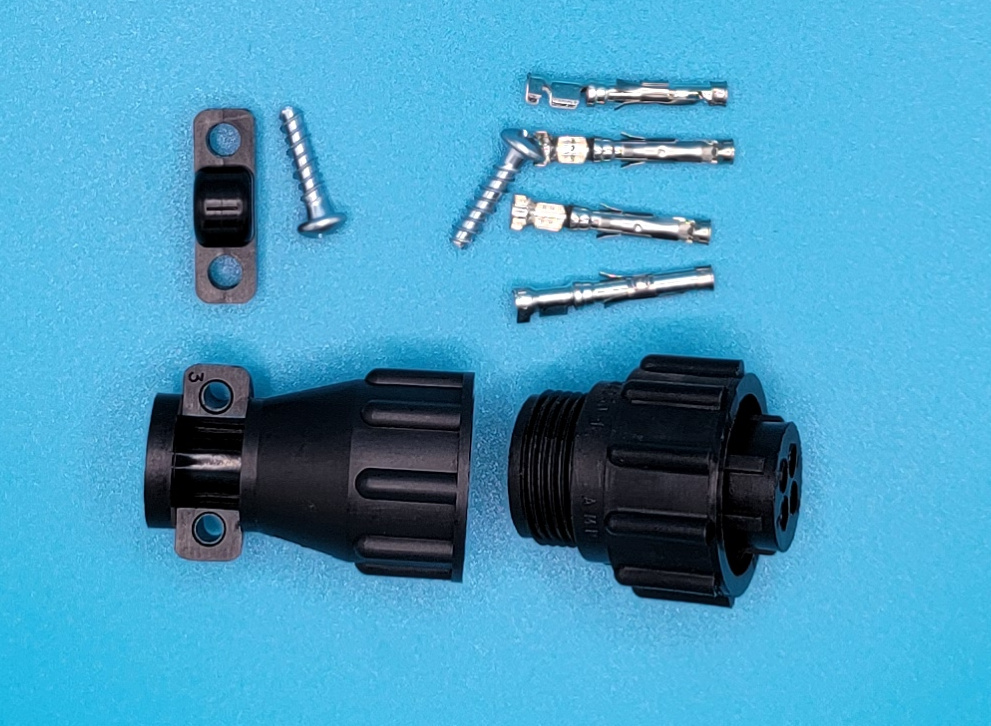

- 1 x Connector body (AMP 206060-1, size 11-4 plug housing)

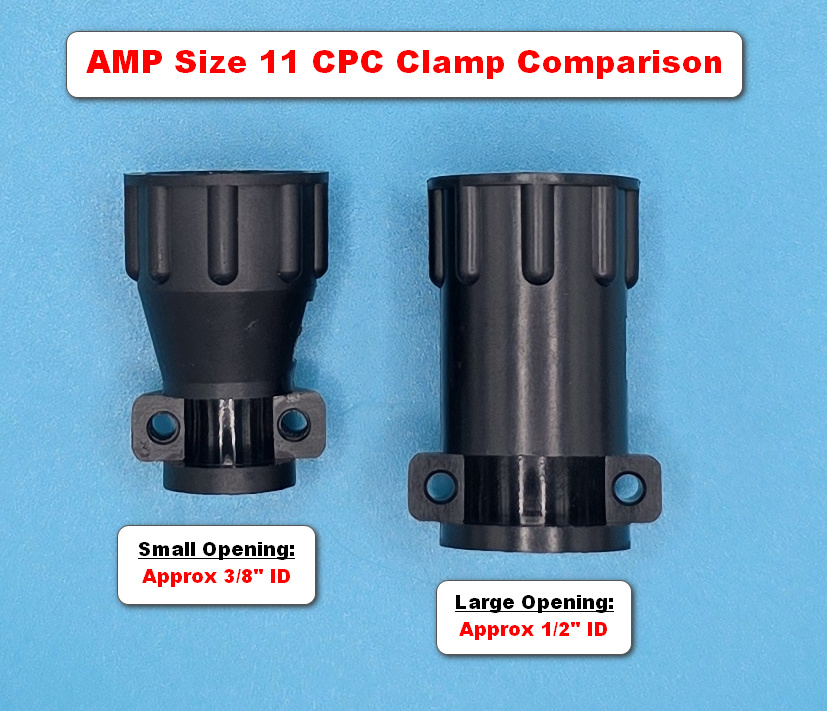

- 1 x Size 11 small opening cable clamp
- 4 x Female crimp socket terminals, 18-16 AWG (AMP 1-66101-9)
Quantities of 10 or more kits may be bulk packed. Always EU RoHS / ELV compliant.
Specifications
| Manufacturer | AMP / TE Connectivity (Tyco Electronics) |
|---|---|
| Product family | CPC Series 1 (Circular Plastic Connector), standard density |
| Connector type | Free-hanging / in-line cable mount plug |
| Sex | Standard sex (housing accepts female socket contacts) |
| Shell size | 11 |
| Positions | 4 (4-pin / 4-circuit / 4-way) |
| Contact type | Multimate crimp, contact size 16 (accepts Type III+ and subminiature coaxial in the same cavity) |
| Coupling | Threaded coupling nut |
| Orientation | Straight |
| Body material | Glass-filled nylon 6.6, black, UL 94V-0 |
| Voltage rating | 600 VAC / VDC |
| Operating temperature | -55°C to 105°C (-67°F to 221°F) |
| Ingress protection | IP65 when mated |
| Dimensions | 12.57 mm diameter, 24.77 mm length (housing) |
| Compliance | RoHS / EU RoHS / ELV compliant, ECCN EAR99 |
| Wire range (included terminals) | 18-16 AWG |
Cross-Reference Part Numbers
The connector body is sold and cataloged under several numbers. These all reference the same TE Connectivity 206060-1 plug housing.
- TE alternate0-0206060-1
- AMP alias810739-000
- AMP aliasLTRW-AMP-206060-1
- No-dash format2060601
- Digi-KeyA1300-ND
- Newark / Farnell / element1444F8386
- Jameco495082
- OnlineComponents10316163
- CrushinAG3CP-C411S-LR
Mating Connectors & Compatible Parts
- Cable mount mating receptacle: AMP 206153-1 — Item 1000-5698
- Panel mount mating receptacle: AMP 206061-1 — Item 1000-4696
- Additional 18-16 AWG terminals: AMP 1-66101-9 — Item 1000-3237
- Additional 22-20 AWG terminals: Item 1000-0883
- Size 11 large opening cable clamp: Item 1000-5893L
- Size 11 coupling / lock ring: AMP 213811-1 — Item 1000-5885
- Pin removal / extraction tool: AMP 305183 — Item 1000-2325
- Professional AMP CPC terminal crimper: Item 1000-2336
Common Applications
- Digi-Star scale indicator power. Standard 4-pin AMP power plug on Digi-Star scale boxes.
- Weigh-Tronix and Avery Weigh-Tronix indicator power. Fits indicators with the 4-pin plastic AMP power input, including the 640, 640M, and 2060.
- Scale weigh-bar and junction-box harnesses. Power and signal runs between indicators, J-boxes, and load cells.
- M3 seed monitor power.
- Planter, drill, and seeder monitor harnesses. Seed sensors, speed sensors, and remote displays.
- Grain cart, seed tender, mixer, and axle weighing systems.
- Tractor pulling electronics. Sled monitors, remote displays, and safety light harnesses.
- SMEMA equipment interfaces. Sensor and machine-to-machine connections on surface-mount assembly lines.
- General industrial signal and power. Any wire-to-wire run needing a sealed, threaded, field-serviceable 4-pin circular connector.
Frequently Asked Questions
What is the AMP 206060-1 connector?
It is a 4-position CPC Series 1 standard sex plug from TE Connectivity, shell size 11. The black thermoplastic housing carries female socket contacts, uses a threaded coupling nut, and is rated to 600V over a -55°C to 105°C range. It is the 4-pin AMP power plug found on many Digi-Star and Weigh-Tronix scale systems.
What terminals does the 206060-1 use, and are they included?
Yes. This kit includes four AMP 1-66101-9 female crimp socket terminals for 18-16 AWG wire. The housing also accepts AMP Multimate contacts, so smaller 22-20 AWG sockets can be substituted when needed.
What mates with the AMP 206060-1?
Any CPC Series 1 size 11-4 receptacle with male pins. The two standard mates are the in-line cable-mount receptacle AMP 206153-1 and the panel-mount receptacle AMP 206061-1.
Is 206060-1 the same as 0-0206060-1 or 810739-000?
Yes. 0-0206060-1 is TE's alternate part-number format, and 810739-000 and LTRW-AMP-206060-1 are AMP catalog aliases. They all refer to the same plug body. Common distributor numbers include Digi-Key A1300-ND and Newark 44F8386.
Which scales use the 4-pin AMP power connector?
Digi-Star and Weigh-Tronix (Avery Weigh-Tronix) indicators that ship with the 4-pin plastic AMP power input. Note that this is the plastic 4-pin connector, not the obsolete 4-pin metal connector found on some older indicators.
What wire gauge fits this kit?
The included terminals are sized for 18-16 AWG wire. Choosing the correct gauge and watching insulation diameter matters for a clean crimp and a sealed fit through the cable clamp.
:
